The Architectural Finishing Specialist
Durable Clay Roof Tiles
TESTED FOR STRENGTH
GCI tiles have been tested to comply with and even surpass the French, German, USA and Singapore standards. It can withstand high impact without chipping or cracking.
Its compactness allows low water absorption to protect against excess weight and roof deck saturation during rainstorms, thus protecting your building
INTERLOCKING PROTECTION
GCI tiles are interlocked for maximum weather and security pro tection. It is designed to keep water out effectively and at the same time, make break-ins extremely difficult!
SUPERIOR INSULATION & ENERGY SAVINGS
By nature, clay is a poor conductor of heat, thus providing good insulation, making it an ideal material for the roof.
In recent studies from Universiti Putra Malaysia, Mr. Mohd Peter Davies & Ms. Nor Azian Nordin found that when using GCI clay roof tiles, the internal temperature of a house is cooler compared to concrete tiles.
This not only results in providing thermal comfort to the occupants but also translates into lower energy cost.
GCI “S” PANTILE (Profile 1)
A Unique way wavy ‘S’ profile with clean, crisp lines yielding bold European architecture. It also interlocks at the head and sides for maximum protection against heavy tropical rains.
Interlock Tile (Profile 1)
Size (approx) : 420 mm x 280 mm
Weight (approx) : 3.5 kg
Coverage : 12.5 tiles per m2
Batten Spacing : 345 mm
Roof pitch (min) : 18º
GCI MARSEILLE (Profile 2)
A classic profile that never goes out of style, Marsiele’s double- valley shape creates a distinctive Mediterranean look at all times. It interlocks at the head and sides for maximum protection against the harshest weather.
Interlock Tile (Profile 2)
Size (approx) : 420 mm x 260 mm
Weight (approx) : 3.5 kg
Coverage : 13.5 tiles per m2
Batten Spacing : 345 mm
Roof pitch (min) : 20º
GCI “S” PANTILE (Profile 1)
A Unique way wavy ‘S’ profile with clean, crisp lines yielding bold European architecture. It also interlocks at the head and sides for maximum protection against heavy tropical rains.
Interlock Tile (Profile 1)
Size (approx) : 420 mm x 280 mm
Weight (approx) : 3.5 kg
Coverage : 12.5 tiles per m2
Batten Spacing : 345 mm
Roof pitch (min) : 18º
GCI MARSEILLE (Profile 2)
A classic profile that never goes out of style, Marsiele’s double- valley shape creates a distinctive Mediterranean look at all times. It interlocks at the head and sides for maximum protection against the harshest weather.
Interlock Tile (Profile 2)
Size (approx) : 420 mm x 260 mm
Weight (approx) : 3.5 kg
Coverage : 13.5 tiles per m2
Batten Spacing : 345 mm
Roof pitch (min) : 20º

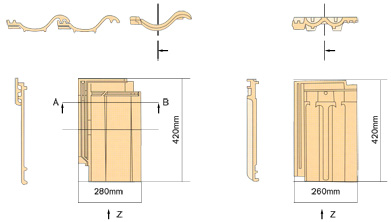

SECTION A-B VIEW Z VIEW Z
Longitudinal Section Longitudinal Section
